All-in-one Printer LCX603
The LCX603 is suitable for small production runs of various labels of any shape
The LCX603 is All-in-one, industrial label printer and finishing solution that includes multiple spot color printing, auto laminating, contour-cut, auto weeding and a sheet cross-cut function. Perfect for low-cost, on-demand, short run labels, specialty labels of any shape, and helps reduce inventory too.
Main Features
High quality printing in 600 x 1200 dpi with maximum three colors
Thermal transfer method is used for printing, inks and solvents are not required for it. It’s easy to handle it.The 8 points size of character can be printed in specified condition.
Available Spot Color Ribbons
Resin 5 colors (Black, Blue, Red, White, Yellow)
Semi Resin 5 colors (Black, Red, Green, Blue, Orange)

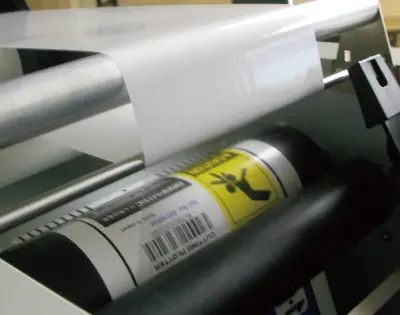

Auto laminating
Laminate film is automatically applied after an image is printed.
Polyester (PET) and polypropylene (PP) based materials are available. Durable labels can be created.
Contour cut
Built-in cutter eliminates needs for cutting die
Contour cutting is performed automatically after it is laminated.
The cutting tool allows a contour of any shape.
This eliminates the need for cutting dies resulting in low cost labels as well as reduced inventory!
The contour is properly aligned to the printed image using the registration mark by equipped registration mark sensing system (RMS). Three (3) registration marks are created and printed automatically in the LCX603. The registration mark is not required in the design of the label.
The weed boarder can be cut using the Flame Cut function. Small size of label will not be removed from backing paper in the auto weeding process.
Auto weed
The weeding mechanism is included and removes unnecessary parts along the contour.
Cross cut
Cross cutting (Auto Sheet Cut) is executed for each page after weeding is done—and a finished label is created.
Label software “NiceLabel Designer Pro”
Included High-performance label creation software with a variety of functions as a standard accesory
- NiceLabel Designer Pro is a label creation software made by Loftware.
Easy creation of labels with intuitive operation
Easily create professional label designs without specialized knowledge.
It allows you to set objects at any position and size by executing tasks such as entering text, creating bar-code, importing image.
More than 70 different bar code, the QR code can be created easily
Full serialization, including non-decimal serial numbers, custom bar-code with check digits, global variables, output masks, date/time arithmetic and scripting help you easily create complex variables.
- The new established bar-code standards etc. will be provided by WEB version upgrade.
| One-dimensional bar-code | Two-dimensional bar-code |
|---|---|
| Anker, Bookland, Codabar, Code 93, Code 128, Code 128-A, Code 128-B, Code 128-C, Code 39, Code 39 full ASCII, Code 39 Tri Optic, Dun-14, Ean-13, Ean-13 + 2, Ean-13 + 5, GS1-128, IFT 14, IFT 16, MSI, Plessey, SSCC, SSCC-18, Upc Case Code | Aztec, Datamatrix, GS1 DataBar, GS1 Datamatrix, GS1 QR Code, MaxiCode, Micro QR, PDF-471, QR |
It is possible to make a label in conjunction with other database
It allows to make a label by interlocking a data base that is created by other software such as Excel with a bar-code and variable. It allows to reduce inventories by creating only necessary labels.
| List of connectable databases |
|---|
| Microsoft Excel, Microsoft Access, Microsoft SQL Server, Text file (CSV), Oracle, MySQL, ODBC data source |
Entering and changing variable data
Various conditions such as increase/decrease of variable data, setting of date and time can be set easily at label creating process.
It can be checked the printed image on the screen before printing the label, and you can easily create accurate labels
Operating conditions
| Item | Description |
|---|---|
| Supported OS | Windows 11 / 10 |
| Recommended PC | CPU: Core i 5 or higher, Memory: 4 GB or more |
- Graphtec does not support software/driver used with operating systems that have become obsolete and are no longer supported by the OS developer.
Corresponding to Multiple languages
“NiceLabel Pro” is a Euro PLUS’s label creation software has gained a high reputation in the world. It is corresponding to the 27 languages display such as English, French, German, Spanish, Portuguese, Italian, Russian, Chinese (Traditional / Simplified), Japanese, Korean, Thai and more.
