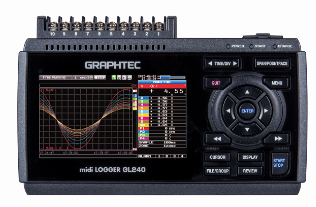

Multi-channel Data Logger GL240

Wireless LAN & High-performance data logger GL240 series

GL240 is a 10-channel type data logger that supports all channel isolated and multi-function input. It can measure various phenomena such as voltage and temperature. By narrowing down the number of channels, data captured at sampling interval of up to 10ms is possible. Wireless LAN unit(option) enables wireless measurement and remote monitoring. Depending on your application, you can select “base mode” or “extension mode” and connect Petit LOGGER GL100 (1 unit) as a child unit.

All Channel Isolated / Universal Input, Standalone Multi-Channel

Voltage, temperature, and humidity can be selected for each input channel.
Use EU scaling for other measurement parameters.

Measure voltage

Supports wide operating range (from 20 mV to 100 V)

Measure temperature

Thermocouple : K, J, E, T, R, S, B, N, C (WRe5-26)

Measure current (4 -20 mA)

Shunt resistor (250Ω) is available as an option.
Equipped with a dedicated 1-5V range for the measurement range

Shunt resistance 250Ω (B-551)

Measure humidity

A humidity sensor is available as an option.
Power for the sensor is also supplied from the main unit.
Equipped with a dedicated humidity range

Humidity sensor (B-530)

Digital I/O port available

Digital I / O can be used by connecting an optional I / O cable.

Input/Output cable (B-513)

Logic/Pulse inputs (4 channels)

Logic : No-voltage contact (A contact, B contact, NO, NC) ,Open collector, Voltage input (H.L decision)
Pulse : 3 types of selections (Rotation / Quantity count / Instantaneous) per channel

Wireless Measurement Using Wireless LAN (optional)

Optional Wireless LAN unit is available in limited region.

Wireless LAN option enables the wireless communication with other device.
Connects to the GL100-WL wireless unit remotely when the GL240 is set as an access point.
When the GL240 is set as a station, PC and smart devices will be able to access the WLAN unit directly.

Remote monitoring

Measured data can be monitored and controlled via PC or a smart device using the application software.

Combining GL100-WL and GL240

GL240 supports 1 unit of the GL100-WL.

Maximum Sampling Interval of Up to 10ms

Up to 10ms sampling speed is achievable when limiting the number of channels in use.

Scrollable

Sampling Interval		10ms	20ms	50ms	100ms
Number of channel		1	2	5	10
Measuring	Voltage	Y	Y	Y	Y
Measuring	Temperature				Y

Built-in 8GB Flash Memory with SD Card Support

The captured data

Scrollable

Sampling	10ms	50ms	100ms	200ms	500ms	1s	10s
GBD format	41 days	88 days	103 days	207 days	Over 365	Over 365	Over 365
CSV format	3 days	12 days	18 days	36 days	91 days	182 days	Over 365

Figures are approximate. File size of captured data is 2GB in GBD or CSV file format on this chart.
Sampling interval is limited by the number of channels in use.(10ms:1ch, 50ms:5ch, 100ms:10ch)

Ring capture function

The most recent data is saved when the memory is configured in ring memory mode. (Number of capturing data is 1000 to 2000000 points)

Relay capture function

Data is continuously saved to multiple files up to 2GB without losing any data until capturing is stopped when the memory is configured in the relay mode.

Hot-swapping the SD memory card

SD card can be replaced during data capturing when the sampling interval is 100ms or slower.

Back up recording data

The data file can be created periodically for purpose of backing up data while recording it, and the file is automatically transferred to another storage device on the unit or FTP server on the network.

Backup interval: 1, 2, 6, 12, 24 hour(s)
Backup file destination: SD memory card or FTP server
Data file format: GBD (binary) or CSV (text)

The CSV format is available with firmware version 1.43 or rater.
• Available sampling speed is the 100 ms or slower when using the CSV format.
• When the RING mode or external pulse synchronization sampling is selected for recording, the backup function is not available.
• The storage device specified as the recording destination of the measurement data can not be set as the transfer destination of the backup file.
• When backup is enabled and data file format is specified with CSV format, SD memory card exchange (hot-swapping) and RELAY recording are not available.

Data file verification

It is a function to check the integrity of the data file when replaying the data file. It compares check-sum generated from the data file and recorded check-sum. When two check-sums do not match, the data file may be corrupted or has been changed by someone. The check-sum code is recorded into the file when data file is created by the GL unit.

Check-sum code is added to normal data recording file and also file created for backup, ring or relay recording. Adding check-sum is available for data files created in GBD format.When the recorded data file is converted and saved using GL100_240_840-APS or GL-Connection software, the check-sum code will not match.
This function is available with firmware version 1.43 or rater.

Useful Functions

Useful functions

Displays the data by a bar chart (in firmware ver.1.10 or later)
Alarm output function
USB drive mode
Easy-to-read 4.3-inch wide color LCD
3 Types of power source
Networking features

Application Software

For PC

GL100_240_840-APS
The application software connects GL series to PC. It perform such as setting, recording, and managing the captured data.

For Smart device

GL-Connect
Easy setting and monitoring from smart devises.

the high-performance software

GL-Connection
Connect GL series and PC via LAN / USB to manage recording data.

Connection with Thermal Printer DP-581H

The printer can be connected via USB or LAN cable
Print out data instantly and prevent data tampering

Show Details

GL240 Main unit specifications

Scrollable

Item		Description
Number of analog input channels		10 channels
External input/ output (*1)	Input (*2)	Trigger or Sampling (1 channel), Logic/Pulse (4 channels)
External input/ output (*1)	Output (*3)	Alarm (4 channels)
Sampling interval		10 ms to 1 hour (10ms to 50ms: voltage only) (*4), External signal
Time scale of waveform display		1sec. to 24 hour /division
Trigger, Alarm function	Trigger action	Start or stop capturing data by the trigger
	Repeat action	Off, On (auto rearmed)
	Trigger source	Start: Off, Measured signal, Alarm, External, Clock, Week or Time Stop: Off, Measured signal, Alarm, External, Clock, Week or Time
	Condition Setting	Combination: OR or AND Analog signal: Rising (High), Falling (Low), Window-in, Window-out Logic signal: Pattern (combination of each input signal in high or low) Pulse (number of count): Rising (High), Falling (Low), Window-in, Window-out
Pulse input function	Measurement mode	Rotation count (RPM) mode Accumulating count mode Instant count mode
Pulse input function	Maximum number of pulse inputs	Maximum input frequency : 50kHz Maximum number of count : 50kC/sampling (16-bit counter)
Interface to PC		USB (Hi-speed), WLAN (using B-568 option) * B-568 is available in limited region.
Storage device	Internal	Built-in 8GB Flash Memory (*5)
	External	One SD card slot (Support SDHC memory card, up to 32GB) (*6)
	Saved contents	Captured data, Setting conditions, Screen copy
Operating environment		0 to 45 ºC, 5 to 85 % RH (non condensed) (When operating with battery pack 0 to 40 ºC, charging battery 15 to 35 ºC)
Power source	AC adapter	100 to 240 V AC, 50/60 Hz (1 pc of adapter is attached as standard accessory)
	DC power	8.5 to 24 V DC (DC drive cable (option B-514) is required)
	Battery pack	Mountable battery pack (battery pack (option B-569): 7.2V DC, 2900mAh)
Power consumption (*7)		Max. 36 VA
External dimensions (W x D x H in mm, Excluding projections)		Approx.194 x 121 x 46 (with the cover)
Weight (*8)		Approx. 634 g (the cover is attached)

Input/Output cable for GL (option B-513) is required to connect the signal.
Input signal;
Voltage range: Up to 24V (common ground)
Signal type: Voltage, Open collector, Contact (relay)
Threshold: Approx. + 2.5 V (Hysteresis: Approx. 0.5V (2.5V to 3V))
Output signal: Open collector (pull-up to 5V by 10kΩ resistor)
<Maximum rating of the output transistor>
Voltage: Max. 30V
Current: Max. 0.5A
Collector dissipation: Max. 0.2W
Minimum interval varies by number of channels used.
The built-in Flash memory is available for units with serial numbers C6043XXX or later. Please contact your local representative for more information.
SD memory card cannot be used on SD card slot while the wireless LAN unit (opton B-568) is used.
Rating under maximum power consumption using the AC adapter, with LCD display on, and battery pack being
charged.
Excludes AC adapter and battery pack.

GL240 Analog input specifications

Scrollable

Item		Description
Input method		All channels isolated balanced input (*9), Scans channels for sampling
Type of input terminal		Screw terminal (M3 screw)
Measurement range	Voltage	20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50, 100 V, and 1-5V F.S. (Full Scale)
	Thermocouple	Type: K, J, E, T, R, S, B, N, and W (WRe5-26)
	Humidity	0 to 100 % RH – using the humidity sensor (option B-530)
Filter		Off, 2, 5, 10, 20, 40 (moving average in selected number)
A/D converter		Sigma-Delta type, 16 bits (effective resolution: 1/40000 of the measuring full range)
Maximum input voltage	Between (+) / (-) terminal	20 mV to 1 V range: 60 Vp-p, 2 V to 100 V range: 110 Vp-p
	Between (+) / (-) terminal	20 mV to 1 V range: 60 Vp-p, 2 V to 100 V range: 110 Vp-p
	Channel / GND	60 Vp-p

The terminal “b” for using the RTD is connected each other across all channels.

Software specifications for PC

Scrollable

Item		Description
Model name		GL100_240_840-APS
Supported OS		Windows 11 (64bit) / 10 (64bit/32bit)
Functions		Control the GL series, Real-time data capture, Replay data, and Data format conversion
Supported units & channels		Up to 1000 channels total, Up to 4 groups (number of units is limited by model)
Settings control		Input condition, Captuering condition, Trigger/Alarm condition, Report, etc.
Capturing data	Saved to PC	Saves captured data in real time (in GBD binary or CSV format)
Capturing data	Saved to GL unit	Saves to the SD memory card (in GBD binary or CSV format)
Displayed information		Y-T waveform, Digital values, Report, X-Y graph (specified period of data, data reply only), Two displays for the current and past data, and Statistical calculation
Displayed information
Warning function
Statistical calculation		Maximum, Minimum, and Avarage during data capturing
Report function		Creates the daily or monthly report automatically

Wireless LAN unit (option) specifications

Scrollable

Item	Description
Model number	B-568 * Available in limited region.
Communication method	Wireless communication (using radio waves in the 2.4GHz band)
Supported WLAN system	IEEE802.11b/g/n WPS: Push button or PIN method Security protocols: WEP64, WEP128, WPA-PSK/WPA2-PSK, AKIP/AES Communication distance: Approx. 40m (depending on the conditions of radio communication)

Humidity Sensor B-530 (option) Specifications

Scrollable

Item	Description
Allowable temperature range	-25 to 80℃
Allowable humidity range	0 to 100％ RH
Relative humidity measurement accuracy	±3％ RH（5 to 98％ RH at 25℃）
Method	Capacitance method
Relative humidity measurement accuracy (5 to 98%)	Measurement environment	Measurement accuracy
	0 to 10℃	±5％ RH
	10 to 20℃	±4％ RH
	20 to 30℃	±3％ RH
	30 to 40℃	±4％ RH
	40 to 50℃	±5％ RH
	50 to 60℃	±6％ RH
	60 to 70℃	±7％ RH
	70 to 80℃	±8％ RH
	* Measurement accuracy at 60℃ or more is a reference value.
Response time	15 sec. (90% response when membrance filter is installed)
Sensor output	0 to 1 VDC
External dimensions	Φ14 x 80 mm (excluding cable)
Cable length	3 ｍ
Sensor power source	DC + 5 to +16 V
Power consumption	approx. 4 mA

Dimensions

GL240 External Dimensions with cover (rubber protector)

Scale : mm
Tolerance : +/- 5 mm

GL240 External Dimensions

Scale : mm
Tolerance : +/- 3 mm

Standard accessories

AC adapter with power cable
Ferrite core (attach to cable for radiation reduction)
Cover (attached to the main body)
SD flash memory
Quick start guide and Safety guide
CD-ROM (PC application software, User manual)

Options

Item	Model number	Description
Wireless LAN unit	B-568	WLAN adapter, IEEE802.11b/g/n * Available in limited region.
Battery pack	B-569	Rechargeable Lithium-ion battery (7.2 V, 2900mAh)
Input/Output cable for GL series	B-513	2 m long (no clip on end of cable)
DC drive cable	B-514	2 m long (no clip on end of cable)
Storage case	B-581	Storage for GL series (except GL7000 and GL100)
AC power adapter	ACADP-20	For replacement Input: 100 to 240 V AC, Output: 24 V DC
