Monitorless Data Logger GLT400

Multi-use & Multi-function Input Data Logger

GLT400 is a multi-use data logger that can be used as a extension unit and a stand-alone measurement such as utilization at research and development, newly expanding the sector to production engineering and production, incorporation into control panels and devices, data acquisition from PLCs via Modbus/TCP, and as PC loggers.
Three types of analog input terminals are available in the lineup, which can be selected due to the input type, and can be expanded from the standard 20 channels to a maximum of 200 channels.
We can provide a document on how to connect to PLCs and other devices using Modbus/TCP.

Expandable and Various Input Terminals Depending on Applications

Combinations of input terminal / terminal base can make suitable machine configurations depending on measurement conditions.

Useful Functions of GLT400

Wireless LAN connection of
GL840 (main unit) and GLT400 (remote unit)

Can record standalone

Mount or embed in a system
Modbus/TCP for for PLC I/O channels
Enable to use as PC hosted data logger

Connect as a remote terminal unit of GL840

Wireless LAN connection
Ethernet connection
Wireless LAN & Ethernet connection

Analog Input Terminal Capable of Multi-input (common analog input terminal)

Voltage, temperature, and humidity can be selected for each input channel.
Use EU scaling for other measurement parameters.

Measure voltage

Supports wide operating range (from 20 mV to 100 V)

Measure temperature

Thermocouple：K, J, E, T, R, S, B, N, C (WRe5-26)
RTD: Pt100, JPt100,Pt1000 (IEC751)

Measure current (4 -20 mA)

Shunt resistor (250Ω) is available as an option.
Equipped with a dedicated 1-5V range for the measurement range

Shunt resistance 250Ω (B-551)
Cannot use B-551 resistor with B-564SL input terminal

Measure humidity

A humidity sensor is available as an option.
Power for the sensor is also supplied from the main unit.
Equipped with a dedicated humidity range

Humidity sensor (B-530)

Digital I/O port available

Digital I / O can be used by connecting an optional I / O cable.

Input/Output cable (B-513)
When connected as a remote terminal unit of GL840, this function cannot be used.

Logic/Pulse inputs (4 channels)

Logic : No-voltage contact (A contact, B contact, NO, NC) ,Open collector, Voltage input (H.L decision)
Pulse : 3 types of selections (Rotation / Quantity count / Instantaneous) per channel

Alarm output (4Channels) & Signal input for external trigger (1Channel)

Start/Stop recording with external trigger.
Alarm output port (1 to 4) are set for each analog input channel.

Expandable Up to 200 Channels

By adding an analog input terminal and an terminal base, it can be expanded in 20ch increments from a min of 20ch to a max of 200ch.

Scrollable

Channel Expansion (Sample)	20ch	40ch	100ch	200ch
GLT400 main unit	1	1	1	1
Terminal base	1	2	5	10
Input terminal (*)	1	2	5	10

Input terminal price is means of standard terminal price.
Terminals (B-564,B-564SL,B-565) can be mixed. However, if you mix B-565 with B-564 or B-564-SL, the specification of B-565 will be equivalent as B-564 or B-564-SL.
When connected as a remote unit of the GL840 series, 180ch is the maximum. (GL840: 20ch + GLT400: 180ch) (sytem max. 200ch)

Expansion method (2 types)

Various Terminals for Different Applications

Standard terminal (B-564)
Withstand high-voltage high-precision terminal (B-565)
Screwless terminal (B-564SL)

The Measurement Data is Safely Stored in the Flash Memory

Standard 8GB built-in flash memory and SD card slot.

Internal memory: 8GB
SD card slot: Support SDHC and Max 32 GB

SD card cannot be used when the wireless LAN unit is used.
Max single file size is 2GB. (use Relay mode to extend recording)

Support Long Term Data Recording

Number of channels and sampling interval

Scrollable

Sampling interval		10ms	20ms	50ms	100ms	200ms	500ms	1s	2s
Number of Channels		1	2	5	10	20	50	100	200
Measurement target	Voltage	Y	Y	Y	Y	Y	Y	Y	Y
Measurement target	Temperature				Y	Y	Y	Y	Y

Sampling Interval and Capturing time

When all 20 analog channels are being used, File size of captured data is 2GB.

Scrollable

Sampling interval	10ms	50ms	100ms	200ms	500ms	1s	10s
GBD Format (Graphtec Binary Data)	31 days	77 days	95 days	108 days	270 days	Over 365	Over 365
CSV Format	3 days	11 days	16 days	21 days	54 days	109 days	Over 365

Convenient Data Recording Functions

Ring capture function

The old data is deleted, and most recent data is saved. When stop the recording, selected data point is saved.
(Number of capturing data is 1000 to 2000000 points)

Relay capture function

Save data to multiple files with specified capturing time or file size until recording data is stopped.

Hot-swapping the SD memory card

SD card can be replaced during data capture when the sampling interval is 100ms or slower.

SD card cannot be used in the slot while the wireless LAN unit (B-568) is used.

USB drive mode

Connect the GLT400 to PC with a USB cable and boot in USB drive mode, it will be recognized as an external drive for your PC. The measurement data in GLT400 can be transferred to PC by drag and drop.

Back up recording data

The recorded data can be automatically backed up to other storage media at regular intervals. FTP backup has a function to delete files in the main unit when the backup is successful.

Backup interval: 1, 2, 6, 12, 24 hour(s)
Backup file destination: Built-In Flash memory, SD memory card, FTP server
Data file format: GBD (binary) or CSV (text)

Available sampling speed is 100 ms or slower when recording in CSV format.
When the RING mode or external pulse synchronization sampling is selected for recording, the backup function is not available.
The storage device specified as the recording destination of the measurement data can not be set as the transfer destination of the backup file.
When backup is enabled and data file format is specified with CSV format, SD memory card exchange (hot-swapping) and RELAY recording are not available.

Standard Accessory for 2 Types of PC Software and Web Browser Function

Simple Operation Software “GLT400 SETTING APP”

Easily enter settings and monitor measured data from a PC. GLT400 is ideal for use with single unit. GLT400 inherited the setting screen menus from GL series.

Advanced Function Software “GL-Connection“

Max 20 units of GLT400 can be connected.
Display modes come standard with a Y-T View, Digital View, XY View and FFT View.
Contains direct Excel functions and a file connection function. Can convert GBD files to CSV format.

Settings, control, data confirmation/transfer are possible from a PC without using dedicated software

WEB browser function
FTP client function

Main unit specifications

Scrollable

Item		Description
Number of analog terminal units		Up to 10 units (200CH)
Analog terminal unit type		Standard terminal, Withstand high-voltage high-precision terminal, Screwless terminal
Sampling speed		10msec to 1 hour (Only voltage:10ms to 50ms with limited channels), External (Able to select at only “STAND ALONE” mode) (*1)
Trigger, Alarm function	Repeat Trigger	Off, On
	Trigger types	Start: Data capture starts when a trigger is generated. Stop: Data capture stops when a trigger is generated.
	Trigger conditions	Start: Off, level value, alarm, external input, specified time, specified day of the week, certain time Stop: Off, level value, alarm, external input, specified time, specified day of the week, certain time
	Alarm judgment modes	Combination: Analog, Logic or “AND” / “OR” of pulse Analog judgment: H (↑), L (↓), Window In, Window Out Logic judgment: Pattern Pulse judgment: H (↑), L (↓), Window In, Window Out
External input / output (*1)	Input type	Trigger input (1 ch) or External sampling input (1 ch), Logic input (4 ch) or Pulse input (4 ch) (Only when the GLT400 is set to STAND-ALONE)
	Input specifications	Input voltage range : 0 to +30 V (single-ended ground input) Input signal: No-voltage contact (a-contact, b-contact, NO, NC), Open collector, Voltage input Input threshold voltage: Approx. +2.5 V Hysteresis: Approx. 0.5 V (+2.5 to +3 V) * Switch between Logic and Pulse. Switch between Trigger and External sampling.
	Output type	Alarm output (4 ch) (Only 1 ch when the GLT400 is set to REMOTE)
	Output specifications	Output format: Open collector output (5 V, pull-up resistance 10 kΩ) <Maximum ratings of output transistor> • Collector-GND voltage : 50 V • Collector current: 2 A • Collector dissipation: 0.3 W
Pulse input	Measurement mode	Revolutions mode / Counts mode / Inst. mode
Pulse input	Maximum number of pulse inputs	Maximum input frequency: 50 kHz Maximum number of count: 50 kC/sampling (16-bit counter)
PC I/F	Interface types	Ethernet (10BASE-T/100BASE-TX), USB 2.0, Wireless LAN (Option)
	Functions	Setup and control of the GLT400 from PC, Data transfer to the PC, Connect to network as a remote terminal unit of GL840
	Ethernet functions	Web server functions, FTP server function, FTP client function, NTP client function, DHCP client function, DHCP server function, Modbus/TCP Protocol
	USB functions	USB drive mode: Transfer and delete the captured files in the internal memory or SD CARD
	Realtime data transfer speed	10 msec/1 ch maximum (The transfer speed depends on the number of channels.)
Memory devices	Internal memory (MEM)	Approx. 8GB
	External memory	SD CARD slot: 1 (Compatible with SDHC, up to approx. 32GB memory available. The memory format only supports FAT/FAT32. )
	1 File size	1 File size is up to 2GB.
	Memory contents	Setup conditions, Measured data
Operating Environment		-20 to +60°C only when using B-564 or B-564SL input terminals & DC power. 0 to +45°C when using B-565 input terminal or AC Adapter 5 to 85%R.H. (non condensed) (When using the USB PD as the power supply, the spec. is based on power supply requirements.)
Power source	AC Adapter	100 to 240 V AC, 50/60 Hz
	DC power	8.5 to 24V DC (maximum 26.4V) (DC drive cable (option B-514) is required))
	USB PD	USB PD compatible, external USB PD compatible battery (USB Power Delivery Revision 2.0 later) (not supplied)
Power consumption		Max. 24 VA (when using the supplied AC adapter, AC100V)
External dimensions [W×D×H] (approx.) (excluding protrusions)		Standard terminal (B-564) or Screwless terminal (B-564SL) is attached: 187.5 × 183 × 65.5 mm
		Withstand high-voltage high-precision terminal (B-565) is attached: 187.5 × 183 × 73.4 mm
Weight (approx.) (AC adapter is not included)		Standard terminal (B-564) is attached: 1090g
		Screwless terminal (B-564SL) is attached: 1020g
		Withstand high-voltage high-precision terminal (B-565) is attached: 1120g
Others		Vibration: Automobile parts Type 1 Class A equivalent

The Input/output cable for GL B-513 (option) is required to use the external output I/O function.

Analog Input terminal specifications (Option)

Scrollable

Item		Description
Item		Standard terminal (B-564)	Screwless terminal (B-564SL)	Withstand high-voltage high-precision terminal (B-565)
Number of analog channels		20ch
Input terminal type		M3 screw type terminal	Screwless terminal	M3 screw type terminal
Input method		Photo MOS relay scanning system. All channels isolated balanced input * Terminal b to be used to connect the RTD and is shorted within all channels.
Measurement ranges	Voltage	20, 50, 100, 200, 500 mV; 1, 2, 5, 10, 20, 50, 100 V; 1-5 V F.S.
	Temperature	Thermocouples: K, J, E, T, R, S, B, N, C (WRe5-26) RTD: Pt100, JPt100, Pt1000 (IEC751) Temperature range: 100°C, 500°C, 2000°C (In the case of Fahrenheit: 150°F, 750°F, 3000°F)
	Humidity	0 to 100% (voltage 0 to 1 V scaling conversion) fixed (* B-530(option) is required)
Filter (moving average basis)		Off, 2, 5, 10, 20, 40 Filter operation is on a moving average basis. The average value of the set sampling count is used. If the sample interval exceeds 30 seconds, the average value of data obtained in a sub-sample (30 seconds) is used.
A/D converter	Method	ΔΣ method
A/D converter	Resolution	16-bit (Effective resolution: About 1/40000 of the +/– range)
Maximum input voltage	Between (+) / (-) terminal	20 mV to 2 V range (60 Vp-p) 5 V to 100 V range (110 Vp-p)
	Channels ((-) / (-))	60 Vp-p		600 Vp-p
	Channel / GND	60 Vp-p		300 Vp-p
Operating environment (When connecting with GLT400)		-20 to 60 ºC (5 to 85% R.H.)		0 to 45 ºC (5 to 85% R.H.)

GL-Connection specifications (in STAND-ALONE mode only)

Scrollable

Item	Description
Supported OS	Windows 11 (64bit) / 10 (64bit/32bit) * We cannot support OS that is no longer supported by the OS manufacturer.
Function	Main unit control, realtime data capture, data conversion
Number of CHs per 1 group	Up to number of connected units
Maximum number of channels	2000 ch maximun
Settings	AMP settings, capture settings, trigger/alarm settings, others
Captured data	Realtime data (CSV, GBD Binary) Data in Internal memory or SD CARD (CSV, GBD binary)
Display	Analog waveforms, logic waveforms, pulse waveforms, digital values
Display modes	Y-T View, Digital View, XY View, FFT View
File conversion	Between cursors, All data
Statistical calculation	Maximum, Minimum, and Avarage during data capturing
E-mail function	Alarm monitor enables sending of e-mail to the specified address

GLT400 SETTING APP specifications

Scrollable

Item	Description
Supported OS	Windows 11 (64bit) / 10 (64bit/32bit) * We cannot support OS that is no longer supported by the OS manufacturer.
Function	Change main unit setting, File operation, Monitoring digital value, Firmware update for main unit * When REMOTE mode is selected, File operation and monitoring digital values are not available.
Number of connectable unit	1 unit
Setting range	AMP settings, Recording settings, Trigger/Alarm settings, I/F settings, others * When REMOTE mode is selected, only I/F settings are available

Wireless LAN unit (option) specifications

Scrollable

Item	Description
Model number	B-568
Communication method	Wireless communication (2.4GHz band)
Installed location	Insert into the SD CARD slot * When the wireless unit is inserted, an SD CARD cannot be inserted into the SD CARD slot.
Supported WLAN system	IEEE802.11b / g / n
Function	Communication range: Approx. 40 m(Range varies depending on the obstacles and the surrounding environment) Controlling from PC and transferring recorded data to PC (Connect as a remote unit of GL840 in “REMOTE”) WPS: Push button or PIN method Encryption function: WEP64, WEP128, WPA-PSK/WPA2-PSK, TKIP/AES

Humidity Sensor (option) Specifications

Scrollable

Item	Description
Model number	B-530
Allowable temperature range	-25 to 80°C
Allowable humidity range	0 to 100％ RH
Relative humidity measurement accuracy	±3％ RH（5 to 98％ RH at 25°C）
Method	Capacitance method
Relative humidity measurement accuracy (5 to 98%)	Measurement environment	Measurement accuracy
	0 to 10°C	±5％ RH
	1 to 20°C	±4％ RH
	20 to 30°C	±3％ RH
	30 to 40°C	±4％ RH
	40 to 50°C	±5％ RH
	50 to 60°C	±6％ RH
	60 to 70°C	±7％ RH
	70 to 80°C	±8％ RH
	* Measurement accuracy at 60°C or more is a reference value.
Response time	15 sec. (90% response when membrance filter is installed)
Sensor output	0 to 1 VDC
External dimensions	Φ14 mm × 80 mm (excluding cable)
Cable length	3 m
Sensor power source	DC between +5 to +16 V
Power consumption	approx. 4 mA

Dimensions

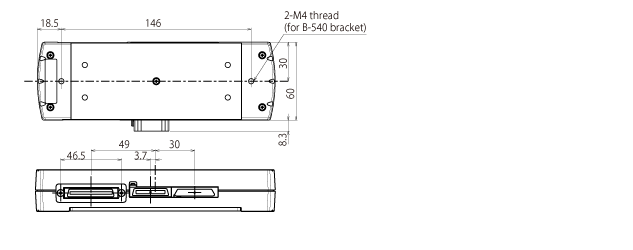

GLT400 Main unit with Standard Terminal

Scale: mm, Tolerance: ±3mm

Input terminal / Base unit

Standard Terminal (B-564) with Base unit (B-566)

Screwless terminal (B-564SL) with Base unit (B-566)

Screwless terminal (B-564SL) with Base unit (B-566)

Withstand high-voltage high-precision terminal (B-565) with Base unit (B-566)

Withstand high-voltage high-precision terminal (B-565) with Base unit (B-566)

Base unit (B-566)

When two Base unit (B-566) are connected

When two Base unit (B-566) are connected

Scale: mm, Tolerance: ±3mm

Standard accessories

AC cable / AC adapter
Spacer (Large: 1, Small: 2 (Used when the terminal base is installed.))
Quick Start Guide
TO ENSURE SAFE AND CORRECT USE

Options

Item	Model	Description
Standard Terminal	B-564	Analog Input terminal
Screwless terminal	B-564SL	Analog Input terminal
Withstand high-voltage high-precision terminal	B-565	Analog Input terminal
Expansion terminal base	B-566	Used for attaching each input terminal (B-564, B-564SL or B-565)
Expansion terminal connection cable (50 cm)	B-567-05	Cable to connect GLT400 and B-566, 50 cm long
Expansion terminal connection cable (2 m)	B-567-20	Cable to connect GLT400 and B-566, 2 m long
Terminal base cover	B-588	Mountable each analog terminal. Not mountable when B-551 Shunt resistor used.
Input/Output cable for GL series	B-513	2 m long (teminated with mating connector and bare wires)
DC drive cable	B-514	2 m long (teminated with mating connector and bare wires)
Bracket for DIN rail	B-540	Bracket for DIN rail (GLT400 or B-566)
Wireless LAN unit	B-568
AC power adapter	ACADP-20	For replacement
